The HAMMEL Recyclingtechnik GmbH offers its customers a diverse range of shredding technology - from primary and secondary shredders to screening technology and complete processing plants. The HAMMEL product range offers the right solution for your requirement.
On the following HAMMEL product pages you learn about the diversity of the HAMMEL-shredding technology. For individual advice, we are always at your service.

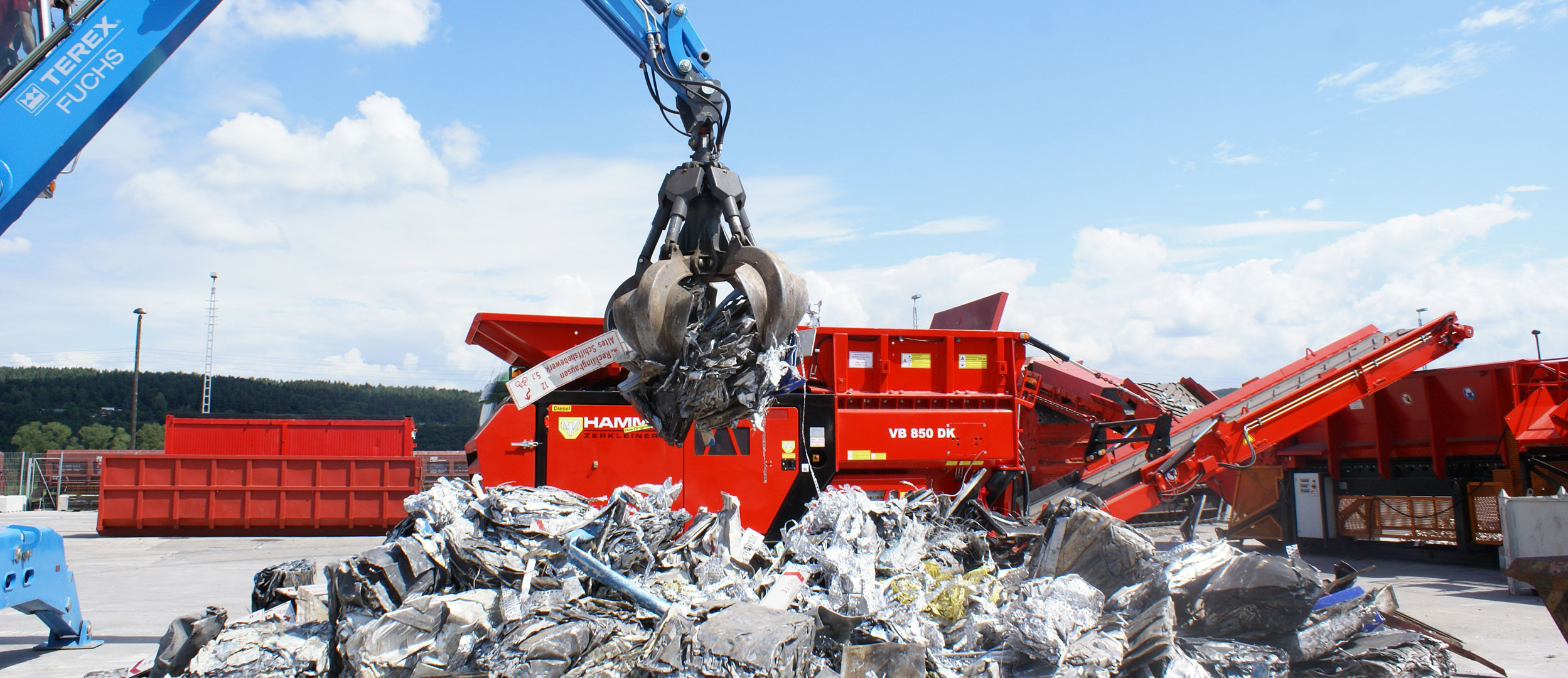

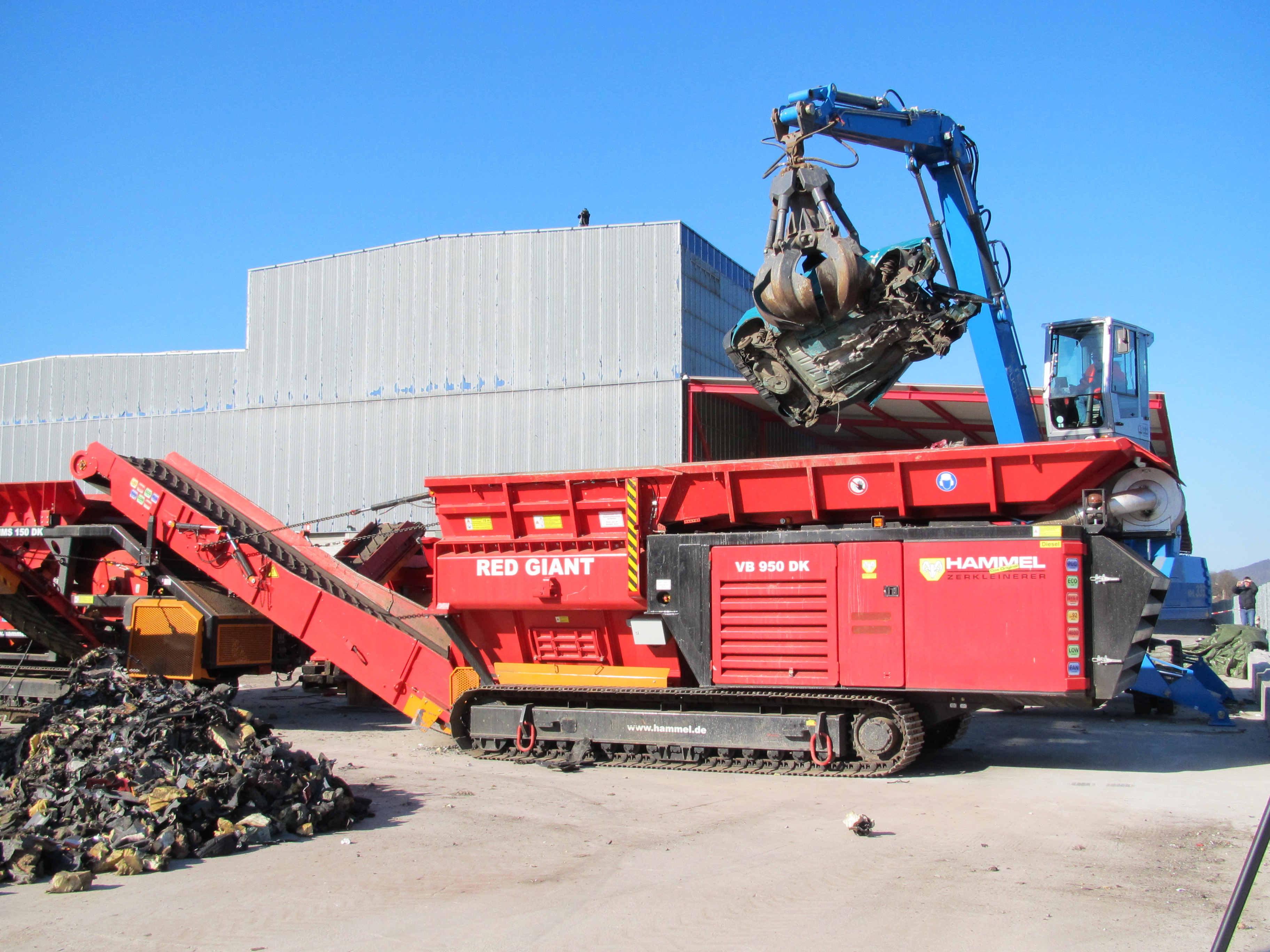

HAMMEL Primary Shredders
HAMMEL-primary shredders use two unique intertwining shredding shafts, that can be configured according to requirements and operate at a maximum speed of 46 revolutions per minute.
The material placed into the hopper is drawn in by the shafts, torn and broken down to be routed directly to the horizontal belt.
If the hydraulic end pressure reached during the shredding process, the shafts of the HAMMEL shredder reverse automatically. The shafts reverse, moving the material back out, removing anything blockage, automatically.

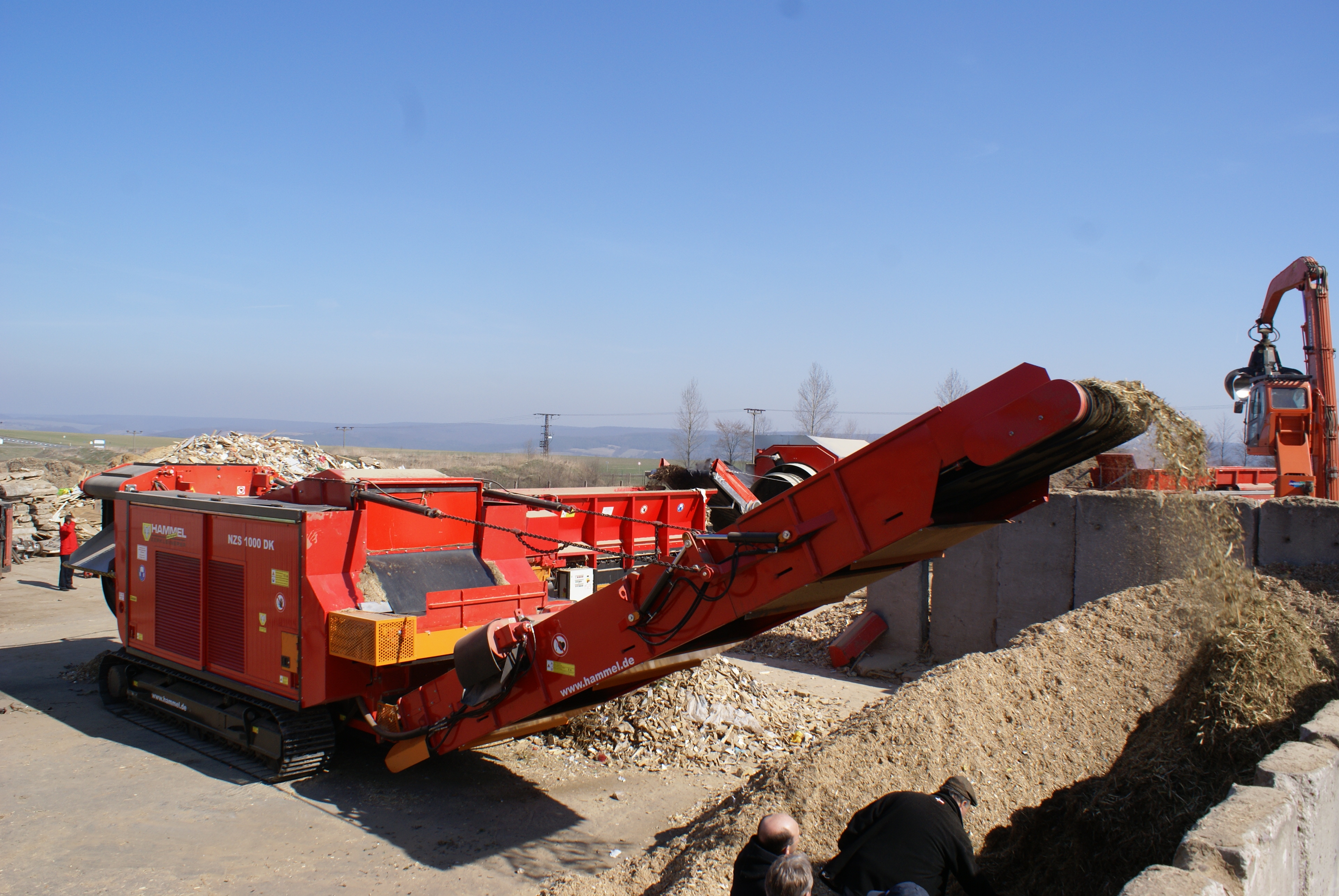

HAMMEL Secondary Shredders
In conjunction with the HAMMEL-primary shredder the HAMMEL-secondary shredder form a powerful complete plant that shreds energy-saving and highly efficient voluminous and bulky materials.
The HAMMEL-secondary shredder work with two different shredding systems - with a knife rotor in wood applications and with an eccentric rotor for metal applications. The choice of the screen basket defines the size of the final product, which enables a high quality further processing.
The automatic metal deposition is continuously adjustable and is done by a metal detector and discharge chute. The metal detector is installed at the conveyor belt, and controls a discharge flap, which is installed either at the end of the belt, or before the transfer to the secondary shredder.

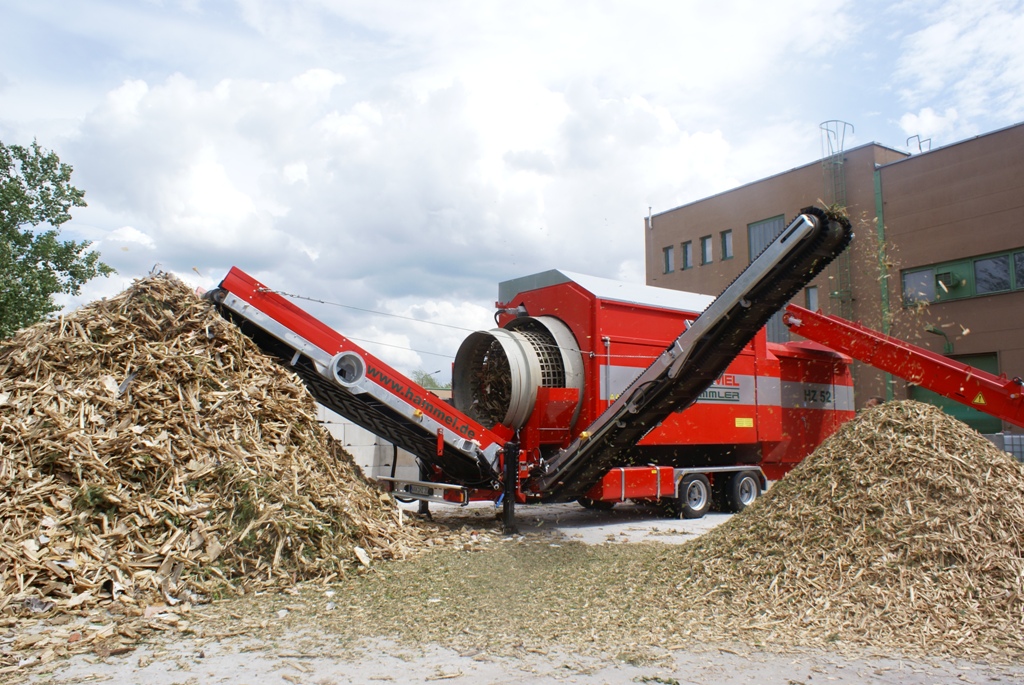

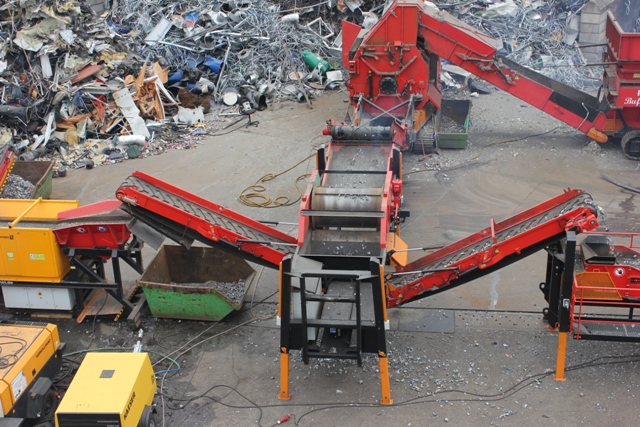

HAMMEL Screening Technology
The HAMMEL screening technology is always adapted to the specific requirements and individual needs of our customers. HAMMEL screeners convince through individual number and size of screen decks, high throughput, customized screen fractions and ideal adaptation to local conditions.
HAMMEL screens are available in stationary-electric and mobile-diesel powered version with hook lift frame and wheel axle or track system. The HAMMEL product range offers e.g. discs and roller screens for wood and waste applications and bar screens for the metal sector. The benefits of the HAMMEL screen technology:
HAMMEL Sorting Technology
HAMMEL does not only convince in the area of recycling technology but also with innovative separation and sorting technologies which are continuously refined. The HAMMEL product range also offers effective and individual solutions for separating different materials.

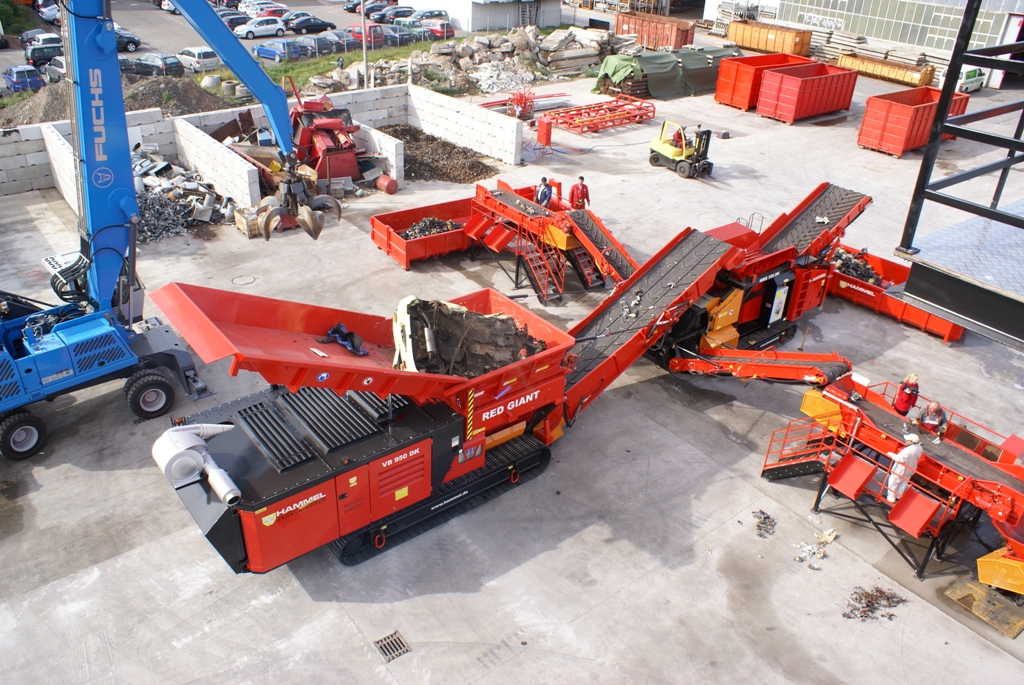

HAMMEL Processing Plants
Following variable screening technology or secondary shredder can be used. The individual plant components are integrated by innovative discharge and conveyor systems.
Based on your requirements we will develop your complete solution!
According to the underlying site conditions stationary plants are planned as individual machine components or as a complete concept. In the first processing stage, the input material is pre-shredded by a HAMME-primary shredder. Then the separation of the materials via a magnet station or sorting lines may take place.
